High Performance Roof
Efficient. Precise. Performance driven.
Our high performance roof panel is a pre-insulated, workshop-engineered roofing system designed for rapid installation and exceptional thermal efficiency. Ideal for timber frame and hybrid builds, it offers airtightness, structural integrity, and faster build times helping you deliver high-performance projects with ease.
Features of our high performance roof system
Precision engineering: prefabricated roof panels / cassettes ensure consistent quality and dimensional accuracy.
Rapid on-site assembly: Prefabricated panels / cassettes reduce construction time and site disruption.
Thermal efficiency: High performance insulation within the panel system delivers excellent U-values and energy efficiency.
Weathertight quickly: Rapid installation allows the building to reach a dry shell stage faster, minimising weather-related delays.
Integrated services: Designed for easy integration with electrical and mechanical systems.
Sustainable timber construction: Manufactured using responsibly sourced timber, supporting environmentally responsible building practices.
Structural integrity: Engineered for strength and stability, suitable for a wide range of roof designs.
Our high performance roof system
0.17 W/m²K
0.14 W/m²K

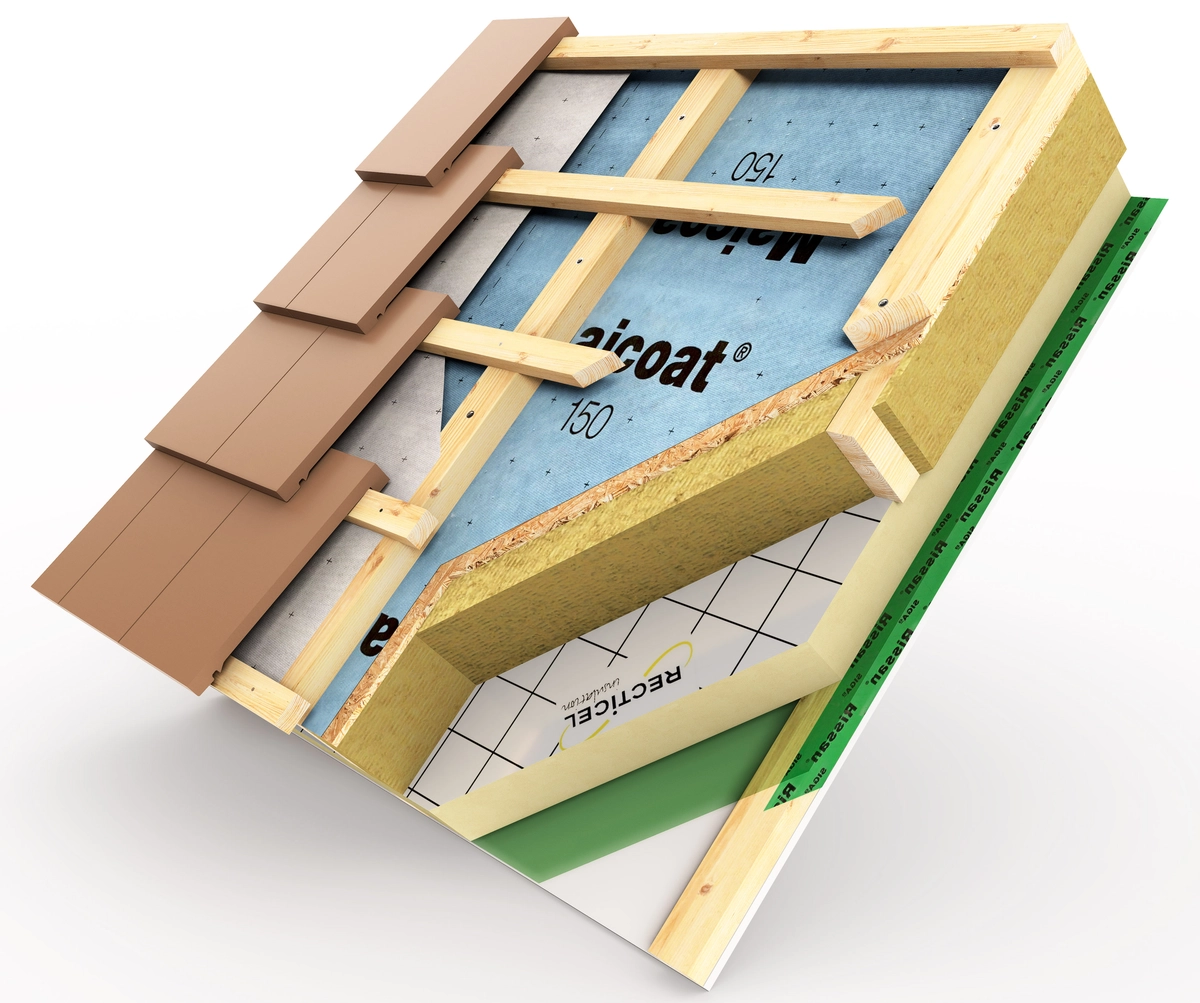

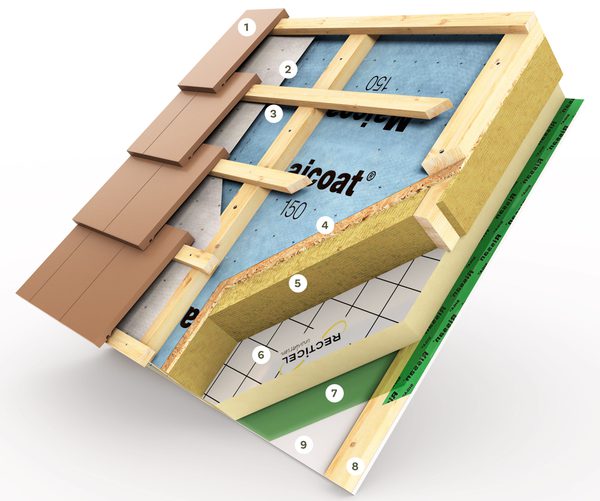

Roof build up
Not supplied. Included for illustrative purposes.
Cavity batten creates the required air gap for ventilation.
Water resistant and vapor-permeable membrane protecting the panels during and after construction while allowing moisture to escape.
Structural panel adding rigidity and strength to wall and roof systems.
Provides a strong structural framework while offering effective thermal and acoustic performance.
A high-performance thermal board over studs to provide excellent insulation and reduce cold bridges.
A membrane installed on the warm side of insulation to limit moisture ingress and prevent condensation within a building’s fabric
Provides space for internal services
N/A
Performance data
| Property | Value / Information |
| U-value (Typical) | 0.12W/m²K |
| Panel Thickness (Typical) | 340mm doesn’t include int finishes and roof |
| Fire Resistance | Our high performance roof system has been assessed and approved by an independent structural engineer to BS EN 1991-1-2 and BS 1995-1-4 |
| Vapour Permeability | Highly breathable system / the assessment reveals no risk for condensation within the build-up. |
| Embodied Carbon | Significantly lower than conventional roof systems |
Compliance & Compatibility
Seamless integration with our high performance wall system, AerosealUK's air sealing technology, AeroBarrier and our wider product portfolio.
Standards: Designed to exceed UK Building Regulations
STA Assure Gold Certified
