WrightRoof insulated panel system

22 07 29 Encap 042 Oakwrights Content Block

Efficient, precise, performance driven roof panel

WrightRoof is a pre-insulated, workshop-engineered roofing system designed for rapid installation and exceptional thermal efficiency. Ideal for timber frame and hybrid builds, it offers high levels of airtightness, structural integrity, and faster build times helping you deliver high-performance projects with ease.

Features of WrightRoof

Precision engineering

Pre-fabricated roof panels/cassettes ensure consistent quality and dimensional accuracy.

2044 3837 b Oakwrights Oakwrights Feature

Rapid on-site assembly

Pre-fabricated panels/cassettes reduce construction time and site disruption.

Thermal efficiency

High performance insulation within the panel system delivers excellent U-values and energy efficiency.

Panel System Diagram 18 A Elements Feature 002

Weathertight quickly

Rapid installation allows the building to reach a dry shell stage faster, minimising weather-related delays.

Integrated services

Designed for easy integration with electrical and mechanical systems.

Sustainable timber construction

Manufactured using responsibly sourced timber, supporting environmentally responsible building practices.

Structural integrity

Engineered for strength and stability, suitable for a wide range of roof designs.

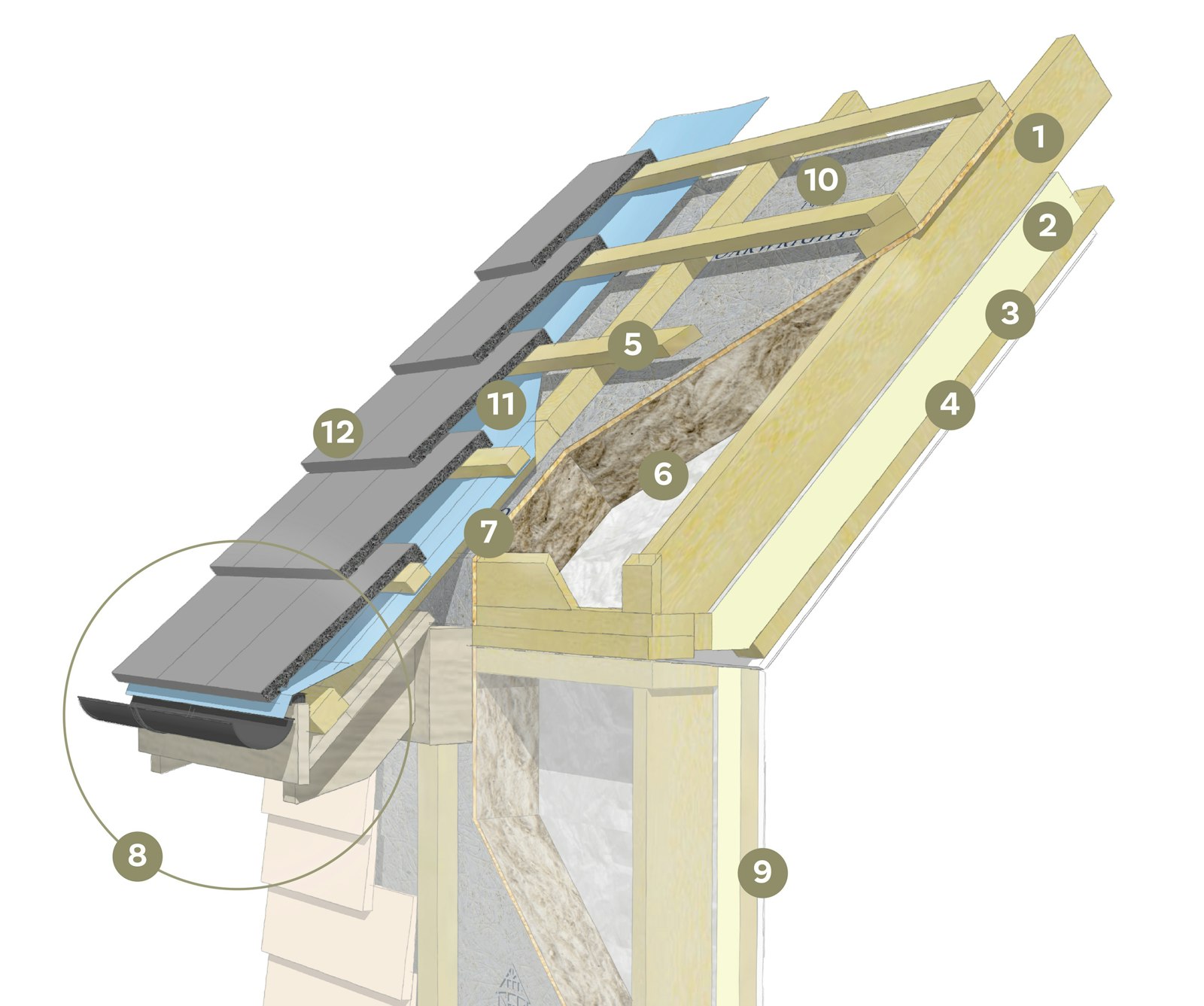

What's in our WrightRoof system?

WR Panel Just Numbers c Content Block 002

Performance data

Property

Value / Information

U-value (Typical)

0.12W/m²K

Panel thickness (Typical)

294mm (doesn’t include finishes and roof).

Fire resistance

WrightRoof has been assessed and approved by an independent structural engineer to BS EN 1991-1-2 and BS 1995-1-4.

Vapour permeability

Highly breathable system / the assessment reveals no risk for condensation within the build-up.

Embodied carbon

Significantly lower than conventional roof systems.

Compliance & compatibility

Compatible with: our WrightWall system, AeroBarrierUK and our full product portfolio, including face glazing and joinery.
Standards: designed to exceed UK Building Regulations.
STA Assure Gold certified
